nanoEdgeTM LOCATION BADGES

AUDIBLE FEEDBACK TRACKING BADGE

Purelink’s nanoEdgeTM Audible Feedback Personnel Tracking Badge is an active RFID tag built for RTLS applications and allows safety and security personnel to automatically send an audible signal to workers, visitors and contractors. The nanoEdgeTM Audible Feedback Personnel Tracking Badge (PLK-NT030-20BZ) is equipped with a buzzer that emits a loud signal and can be used to inform personnel wearing the badge of the safety and security situation or the status of their environment.

Technical Specifications

  • 4.5mm thickness
  • 85mm X 54mm X 4.5mm (about the size of a credit card)
  • 200-meter range
  • Location accuracy: ± 2 m
  • 5-year battery lifetime at a blink rate of 1/sec
  • IP54 rated
  • Requires receivers with Combadge module

Options

  • Integrated access control chip
  • Integrated motion detector
  • Transmission rate:
    • 1 per second (lifetime 5 years)
    • 5 per second (lifetime 2.5 years)

Application

  • Tracking of patients, employees, visitors & contractors
  • Security & safety
  • Worker assistance
  • Enterprise process analysis & control

Visitor control Workplace safety
Personnel tracking badge with audible feedback

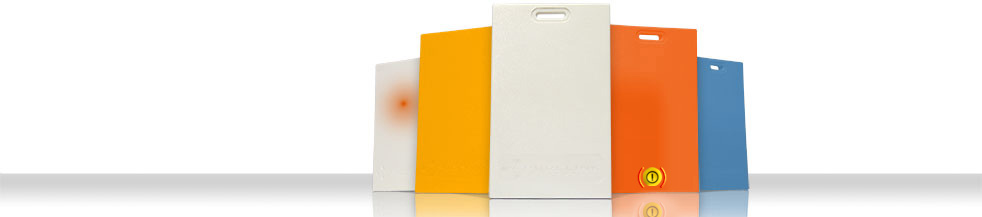

Avalaible in 5 colors
  Personnel tracking badge with audible feedback Personnel tracking badge with audible feedback Personnel tracking badge with audible feedback Personnel tracking badge with audible feedback Personnel tracking badge with audible feedback
PLK-NT030-20BZ
Starting From*: $ 48.89
purchase   Purchase
PDF   Download Spec Sheet
PDF   Green Program
..
Videos >
Software >
Badges & Tags >
Products >

*Sold in packs of 250. All prices are in USD.
Prices are subject to change without notice.
